| Tab Description | |||||||||||||||||||||||||||||||
| Uses & Features | Features - Latest Digital Signal Processing Technology - Wide Dynamic Range - High Precision - Modular Design - On Demand Selection - Wide Warm Design, Operating Temperature from -15 0C to 50 0C - Complies with IEC 61672 Class 1
Uses Widely Use in Industrial Noise Surveys; Machinery, Vehicles, Ships and etc May also Used in Ambient Noise |
||||||||||||||||||||||||||||||
| Technical Specification |
|
||||||||||||||||||||||||||||||

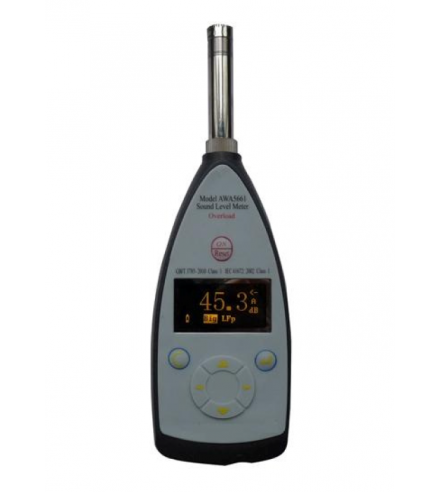

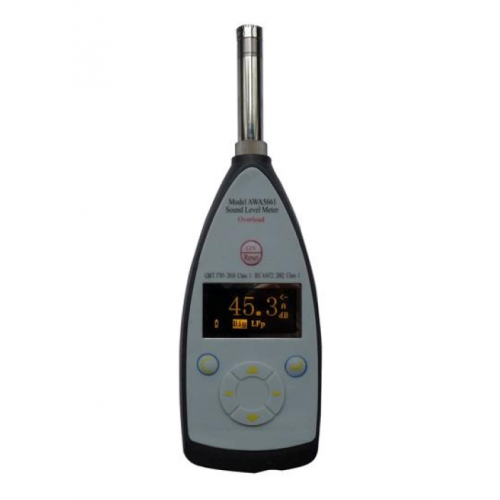

AWA5661-2 Digital Sound Level Meter
Sound Level MeterFeatures
- Latest Digital Signal Processing Technology
- Wide Dynamic Range
- High Precision
- Modular Design - On Demand Selection
- Wide Warm Design, Operating Temperature from -15 0C to 50 0C
- Complies with IEC 61672 Class 1
Uses
Widely Use in Industrial Noise Surveys; Machinery, Vehicles, Ships and etc
May also Used in Ambient Noise
| Items | AWA5661-2 |
| Meter Dimensions | 220 x 68 x 27 mm |
| Standards | IEC 61672 Class 1 |
| Content | Meter, Microphone, Windscreen, Calibration Certificate, Carrying Case and English Manual |
| Application | Noise Integrating Measurement |
| Frequency | 10 Hz ~ 20 kHz |
| Power Supply | Battery 4 x LR 6 or External Power |
| Product Weight | 0.3 Kg |
| Measurement Range | 27 ~ 140 dBA |
| Display | 128 x 64 OLED |
| A/D Bits | 48 kHz |
| Notes | +/- 0.7 dB Accuracy with 0.1 dB Resolution |
| A, C, Z Weighting ; F, S, I, Peak Weighting | |
| Lp, Lmax, Lmin, Lpeak, Leq,t, SEL, E | |
| ½” Prepolarized Condenser Microphone |
