| Tab Description | |||||||||||||||||||||||
| Uses & Features | Features - Complies with IEC 60318-1 - Acoustical Impedance similar to that of the Human Ear
Uses - Frequency Response and Sensitivity Measurements on Telephone - Receivers and Earphones - Calibration of Audiometers |
||||||||||||||||||||||
| Technical Specification |
|
||||||||||||||||||||||

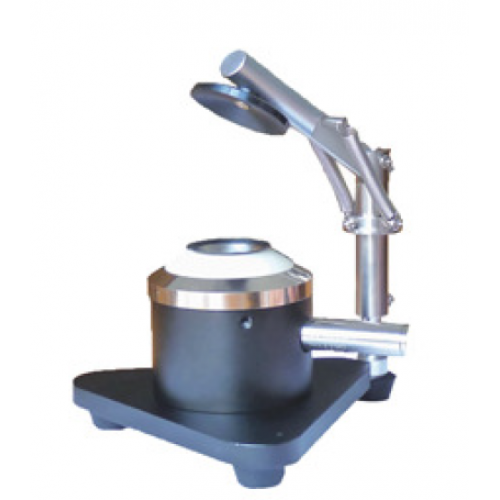

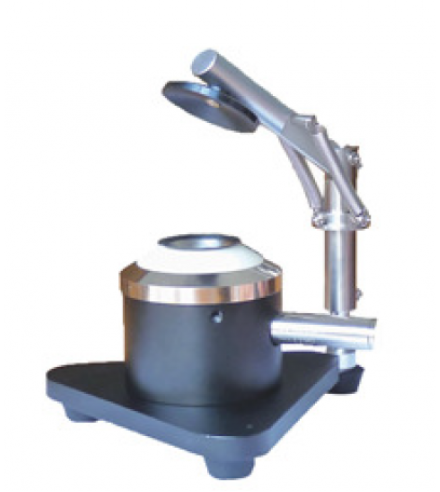

AWA6163 Ear Simulator
Electroacoustic Measuring InstrumentFeatures
- Complies with IEC 60318-1
- Acoustical Impedance similar to that of the Human Ear
Uses
- Frequency Response and Sensitivity Measurements on Telephone
- Receivers and Earphones
- Calibration of Audiometers
| Model | AWA6160 |
| Name | 6 cm3 Coupler |
| Fulfils Standard | IEC 60318-3 (IEC 60303-1970) |
| Frequency Range | 125 Hz ~ 8,000 Hz |
| Frequency Response | ≤ ±1dB |
| Used with Microphone | Model AWA14412 1” Pressure Field Microphone |
| Used with Preamplifier | Model AWA14601B or AWA14604 Preamplifier |
| Operation Voltage Range for the Preamplifier | AWA14601B : 12 V ~ 36 V AWA14604 : 4 mA ~ 10 mA |
| Length of Cable | 2 m |
| Accessories | Ear Simulator Test Jig |
| Uses | For Calibrating Audiometers and Audiometry Headphone |
