| Uses & Features | Features - 1/2” Prepolarized Microphone Compatible - Lemoconnector with Cable for Easy Installation and Use - Low Output Impedance so that Long Extension Cable Can Be Used
Uses - Signal Analysis Measurements Setups - With 1/2 “ Prepolarized Condenser Microphones - Sound Power Measurements - Machinery Noise Measurements |
||||||||||||||||||||||||||||
| Technical Specification |
|
||||||||||||||||||||||||||||

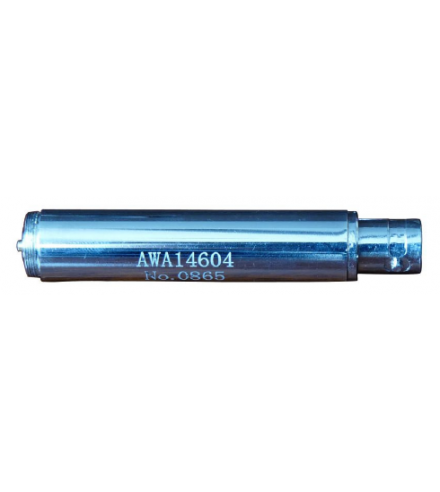

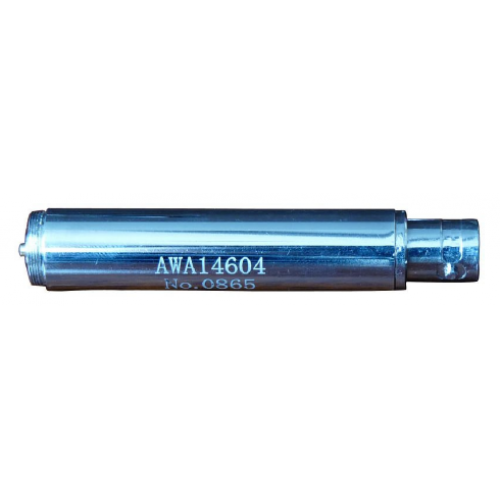

AWA14604E Microphone Preamplifier
Condenser Microphone & PreamplifierFeatures
- 1/2” Prepolarized Microphone Compatible
- Lemoconnector with Cable for Easy Installation and Use
- Low Output Impedance so that Long Extension Cable Can Be Used
Uses
- Signal Analysis Measurements Setups
- With 1/2 “ Prepolarized Condenser Microphones
- Sound Power Measurements
- Machinery Noise Measurements
| Model | AWA14604E |
| Frequency Response (re. 250 Hz) |
20 Hz ~ 20 kHz, ± 0.2 dB 10 Hz ~ 100 kHz, ± 0.5 dB |
| Measurement Range (dB) (re. 50 mV/Pa) |
15 ~ 134 |
| Gain | - 0.15 dB |
| Input Impedance | ≤10GΩ//0.5pF |
| Noise | A – weighting (20 pF) < 4 pV Z – weighting (20 pF) < 15 pV |
| Distortion (THD) | < -60 dB |
| Output Impedance | < 50Ω |
| Max. Output Voltage | 6 VRLVIS (at Power Voltage 24 V) |
| Power Voltage | ICP 2mA ~ 10mA |
| Operating Current | ICP 2mA ~ 10mA |
| Polarization Voltage (V) | 0 |
| Outside Diameter | N12.7mm (1/2”) |
| Weight | < 20 g (exclude cable) |
