| Tab Description | |||||||||||||||||||||||||||||
| Uses & Features | Features - 1/2” Prepolarized Microphone Compatible - Lemoconnector with Cable for Easy Installation and Use - Low Output Impedance so that Long Extension Cable Can Be Used
Uses - Signal Analysis Measurements Setups - With 1/2 “ Prepolarized Condenser Microphones - Sound Power Measurements - Machinery Noise Measurements |
||||||||||||||||||||||||||||
| Technical Specification |
|
||||||||||||||||||||||||||||

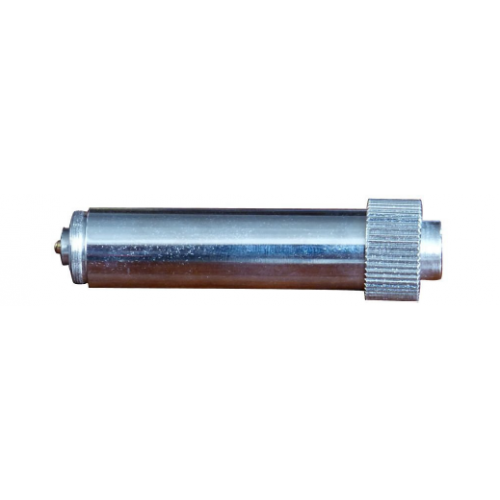

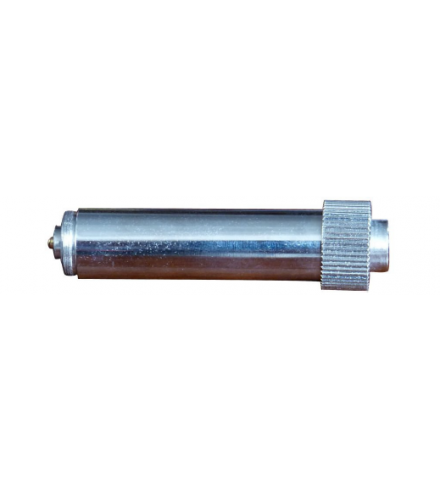

AWA14601 Microphone Preamplifier
Condenser Microphone & PreamplifierFeatures
- 1/2” Prepolarized Microphone Compatible
- Lemoconnector with Cable for Easy Installation and Use
- Low Output Impedance so that Long Extension Cable Can Be Used
Uses
- Signal Analysis Measurements Setups
- With 1/2 “ Prepolarized Condenser Microphones
- Sound Power Measurements
- Machinery Noise Measurements
| Model | AWA14601 |
| Frequency Response (re. 250 Hz) |
10 Hz ~ 20 kHz, ±0.2 dB 5 Hz ~ 200 kHz, ±0.5 dB |
| Measurement Range (dB) (re. 50 mV/Pa) |
15 ~ 140 |
| Gain | - 0.2 dB |
| Input Impedance | ≥ 10GΩ//0.5pF |
| Noise | A - weighting (20 pF) < 2.5 pV Z - weighting (20 pF) < 10 pV |
| Distortion (THD) | < -60 dB |
| Output Impedance | < 150Ω |
| Max. Output Voltage | 20 Vp - p (at power voltage 30V) |
| Power Voltage | 15 V ~ 45 V |
| Operating Current | 1 mA |
| Polarization Voltage (V) | 200, 28, 0 |
| Outside Diameter | N12.7mm (1/2”) |
| Weight | < 20 g (exclude cable) |
