| Tab Description | |||||||||||||||||||||||||||||||||
| Uses & Features | Features - Complies with IEC 61672 Class 2
Uses - Use in Industrial Noise Surveys; Machinery, Vehicles, Ships and etc |
||||||||||||||||||||||||||||||||
| Technical Specification |
|
||||||||||||||||||||||||||||||||

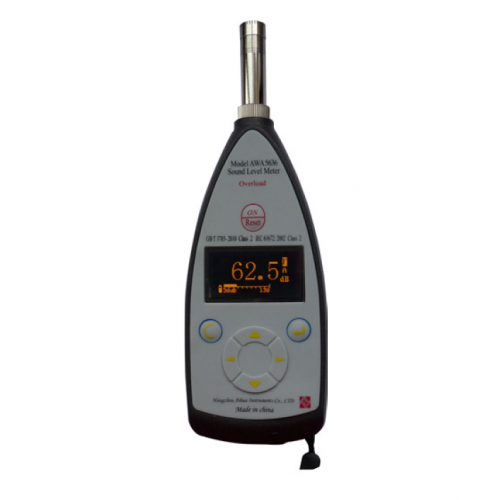

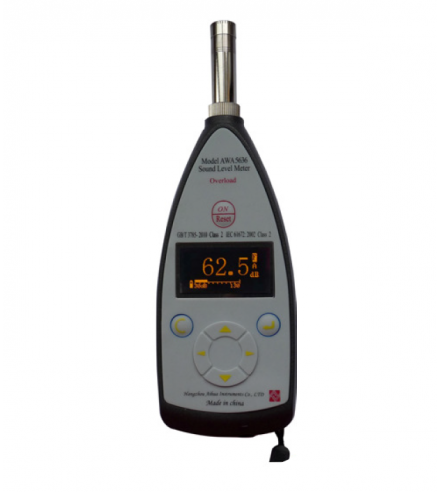

AWA5636-1 Digital Sound Level Meter
Sound Level MeterFeatures
- Complies with IEC 61672 Class 2
Uses
- Use in Industrial Noise Surveys; Machinery, Vehicles, Ships and etc
| Items | AWA5636-1 |
| Meter Dimensions | 210 x 68 x 27 mm |
| Standards | IEC 61672 Class 2 |
| Content | Meter, Microphone, Windscreen, Calibration Certificate, Carrying Case and English Manual |
| Application | Noise Measurement |
| Frequency | 20 Hz ~ 12.5 kHz |
| Power Supply | Battery 4 x LR 6 |
| Product Weight | 0.3 Kg |
| Measurement Range | 30 ~ 130 dBA |
| Display | 128 x 64 OLED |
| A/D Bits | 32 kHz |
| Working Temperature | -10 °C ~ 50 °C |
| Notes | +/- 1 dB Accuracy with 0.1 dB Resolution |
| A, C, Z Weighting; F, S Weighting | |
| Lp, Lmax | |
| ½” Prepolarized Condenser Microphone |
