| Tab Description | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Uses & Features | Features - Attractive Design ; Mini-Sized and Weighs only 85g - Modular Design, Cable-Free and Dual Channels - Complies with IEC 61672, IEC 61252 and ANSI S1.25 - Rechargeable Lithium Polymer Battery - Software Package, Downloads to PC - Variety Mounting Methods
Uses - Precision Noise Measurements - Sound Level Logging and Precision Recording - Personal Noise Exposure Measurement in the Workplace - Occupational Noise Evaluation
Measurement Kit Includes - ASV5910-2 Noise Dosimeter (5 sets) - AWA6221B Sound Calibrator Type 2 (1 set) - Microphone Adaptor (from ½” to ¼”) (1 set) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technical Specification |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

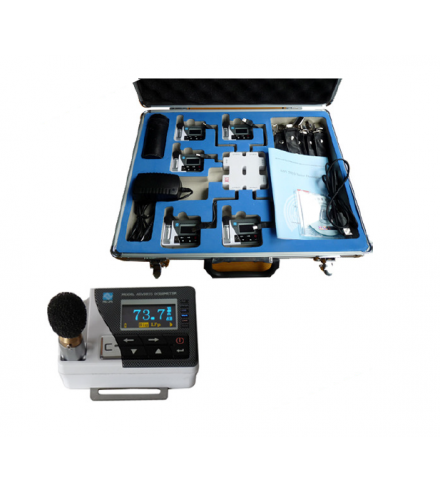

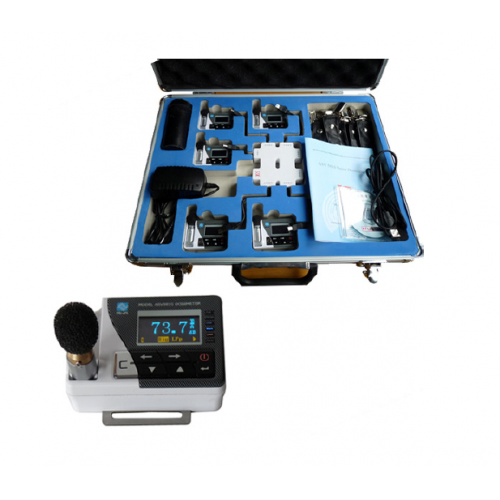

Noise Dosimeter Measurement Kit ASV5910-2
Noise DosimeterFeatures
- Attractive Design ; Mini-Sized and Weighs only 85g
- Modular Design, Cable-Free and Dual Channels
- Complies with IEC 61672, IEC 61252 and ANSI S1.25
- Rechargeable Lithium Polymer Battery
- Software Package, Downloads to PC
- Variety Mounting Methods
Uses
- Precision Noise Measurements
- Sound Level Logging and Precision Recording
- Personal Noise Exposure Measurement in the Workplace
- Occupational Noise Evaluation
Measurement Kit Includes
- ASV5910-2 Noise Dosimeter (5 sets)
- AWA6221B Sound Calibrator Type 2 (1 set)
- Microphone Adaptor (from ½” to ¼”) (1 set)
| Items | ASV5910-2 Noise Dosimeter |
| Applied Standards | IEC 61252:2002 Personal Sound Exposure Meters IEC61672-2002,Class 2 ANSI S1.25:1991 Personal Noise Dosimeters |
| Microphone | 1/4 inch Prepolarized Condenser Field Replaceable Threaded Microphone |
| Channel | Dual Channels |
| Measurement Range | 60 -143 dBA, 65 - 143 dBC, 70 - 143 dBZ (Sensitivity : -53 dB ) |
| Peak C Measuring Range |
80 dB to 143 dB |
| Frequency Range | 20 Hz to 12.5 kHz |
| Frequency Weightings | Parallel (Simultaneous) A, C, Z for each Channel |
| Time Weightings | Parallel (Simultaneous) F, S, I, Peak for each Channel |
| Selectable Thresholds | 40 dB to 90 dB |
| Exchange Rates | 3, 4, 5 and 6 |
| Selectable Criterion | 70 dB to 90 dB |
| Dose Exposure Measurement Range |
0.01 Pa²h ~ 99.99 Pa²h |
| Noise Dose Measuring Range |
0% ~ 9999% |
| Integrating Time | 1 second ~ 24 hours |
| Memory Capacity | 2GB |
| Sampling Interval of Statistic Analysis |
0.01s |
| Calibration Information | Calibration Dates, Times and Levels |
| Internal Software Function |
Integrating Function, Statistical Analysis Function |
| Security | Lock via Keys |
| Power Supply | Rechargeable Lithium Polymer Battery |
| Battery Life | Over 16 hours Run Capacity |
| Dimensions | 68 (H) x 68 (W) x 20 (D) mm |
| Weight | 95g |
| Working Temperature | -15°C ~ 50°C |
| Display | 128 x 64 LCD |
| Output | Mini USB Port |
| Measure Parameters | LXYp, LXeq,T, LXYmax, LXYmin, LN (Note : X is A, C, Z; Y is F, S, I; N can be 1-99) SEL, Lex,8h, Lavg, TWA, DOSE, E, SD, LXpeak |
| Precision Recording Function |
32 kHz,16bit – High Sample Frequency, High Accuracy. Big Capacity Files for Further Analysis |
| 16 kHz,16bit – Medium Sample Frequency, Medium Capacity Files for Further Analysis | |
| 8 kHz, 8bit – Low Sample Frequency, Low Capacity Files only for Monitoring |
